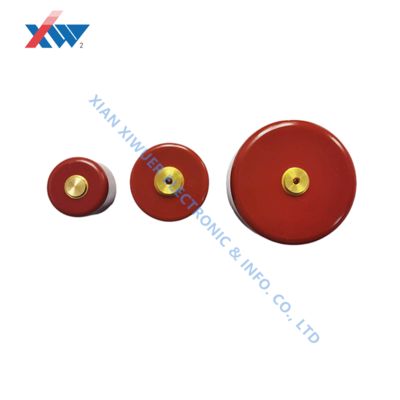

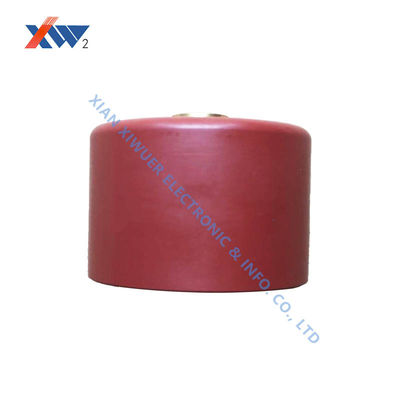

Non-standard options: Provide customized high-voltage capacitor solutions for your synchrotron radiation light source project

Non-standard options: Provide customized high-voltage capacitor solutions for your synchrotron radiation light source project
Why do synchrotron radiation sources need customized capacitors?

Special Voltage and Capacitance Requirements: Electron gun acceleration voltages and specific pulse magnet applications may require unconventional voltage/capacitance combinations (e.g., voltages above 50kV, or specific capacitance values ​​to achieve precise LC resonant frequencies).

Extreme Spatial Layout Requirements: To optimize system layout and minimize loop inductance, capacitor dimensions, terminal location, and orientation may require specialized design.

Extreme Electrical Performance Requirements: To achieve faster pulse response or lower losses, capacitors must have ESR and ESL below the lower limits of existing standards.

Special Materials and Processes Requirements: To meet the requirements for use in ultra-high vacuum environments or to avoid interference from strong magnetic fields, specialized low-outgassing materials and non-magnetic/low-magnetic materials are required.

Drawing:


Parameters:
